Valves, Adapters & Couplers

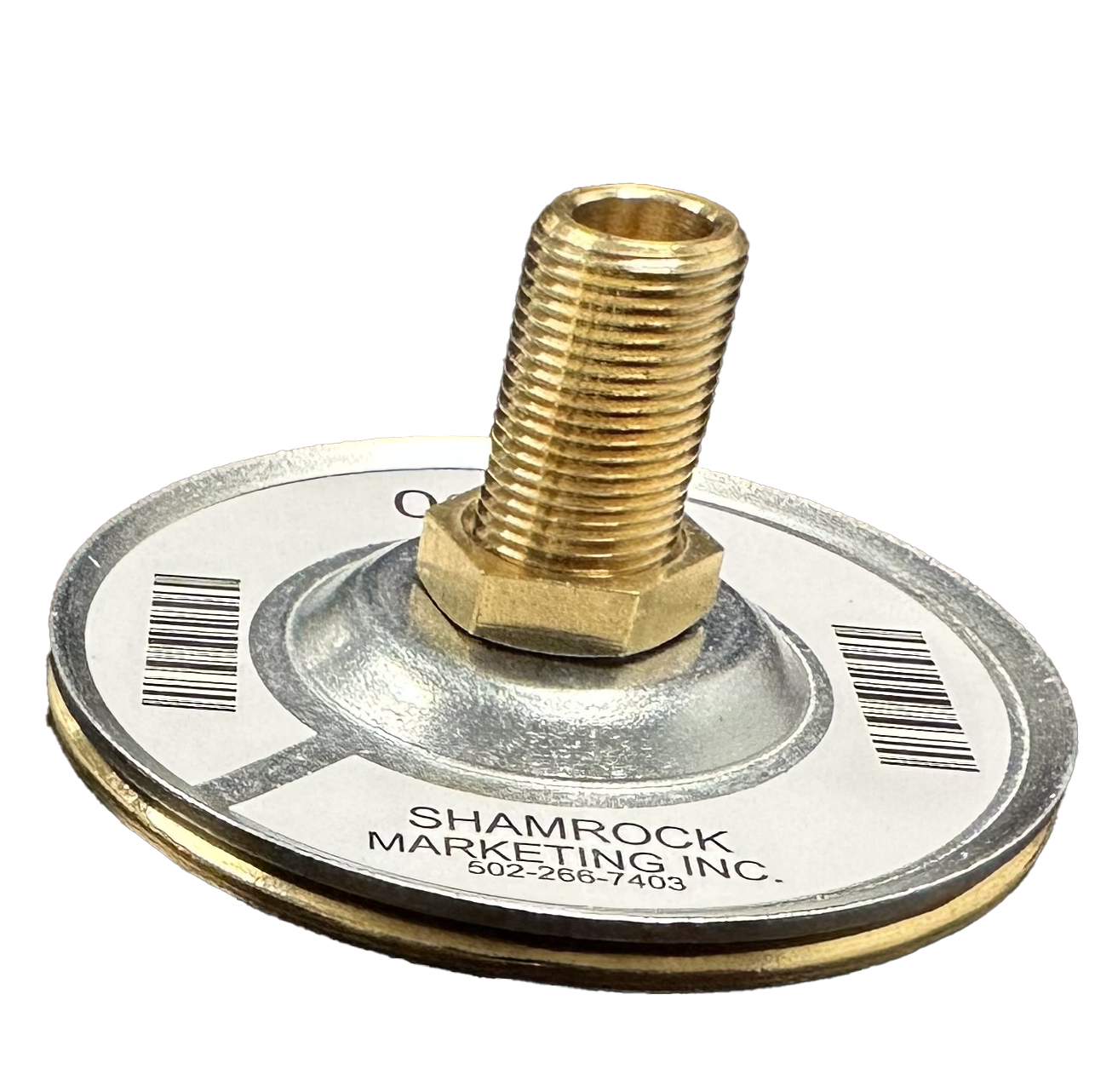

FATBOY VALVES

Shamrock’s EXCLUSIVE wide-base valve is equipped with both unique human-readable code & barcode.

Not all valves are designed or installed equally. With over 30 years of experience, we understand how important it is that your envelope is properly equipped with the correct valve assembly. Our team of experts has designed and simplified a foolproof valve assembly, so there’s no guesswork

LEAKS DURING CURING? Check Your Valves!

There are 3 simple things to look for to help make sure you don’t have problems:

1. LARGE BASE – Look for a valve footprint of at least 2.5” combined with large air channels to accommodate better air flow than a traditional small base valve and to prevent air trap on the tread.
2. WASHER & STEM – Look for a large diameter washer equipped with a negative o-ring. This design utilizes the envelope to create a self-sealing washer. Envelope valve stems should have a thread stop to prevent overtightening of the nut.
3. TORQUE & LOCTITE – The valve nut should be tightened to the manufacturer’s recommended torque. Any valve adapter should include Loctite and proper torque to prevent leaks throughout the service life of the envelope.

ADAPTER & COUPLER PAIRINGS
